Dee layout, z positions and envelope
 VPT sorting/perimeter xtals

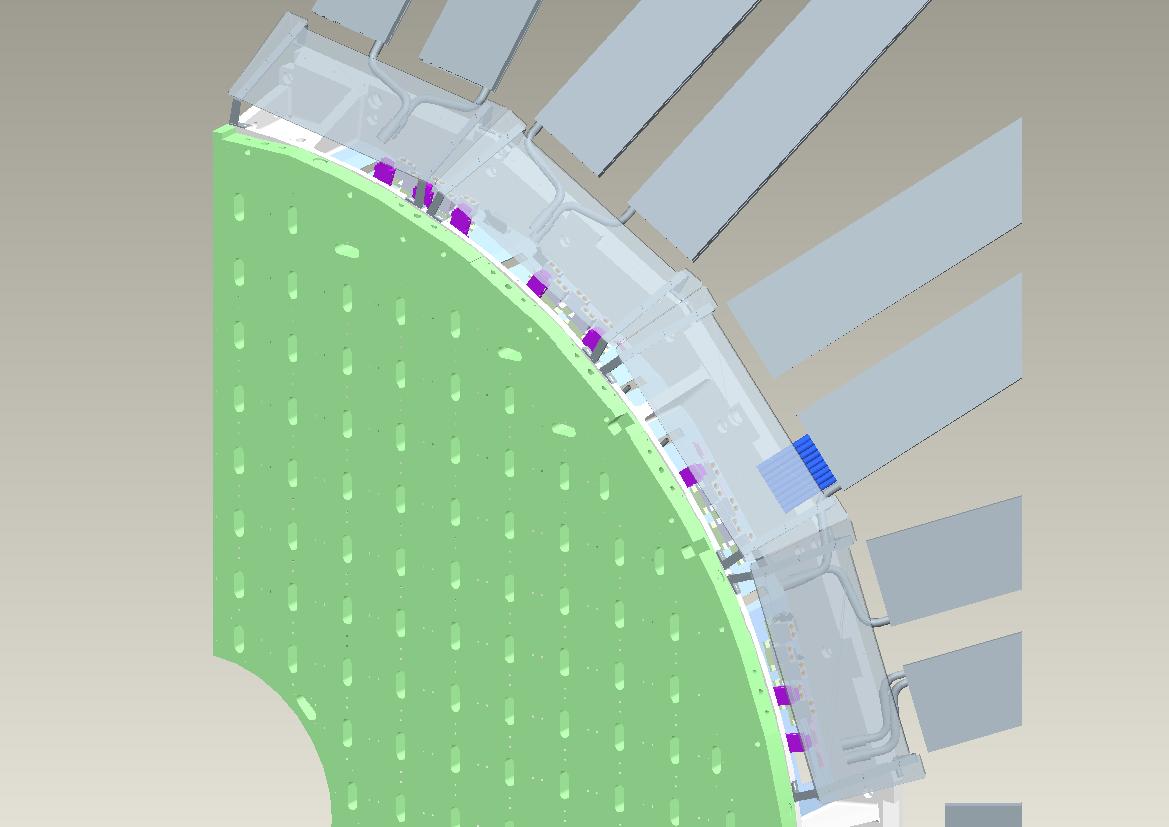

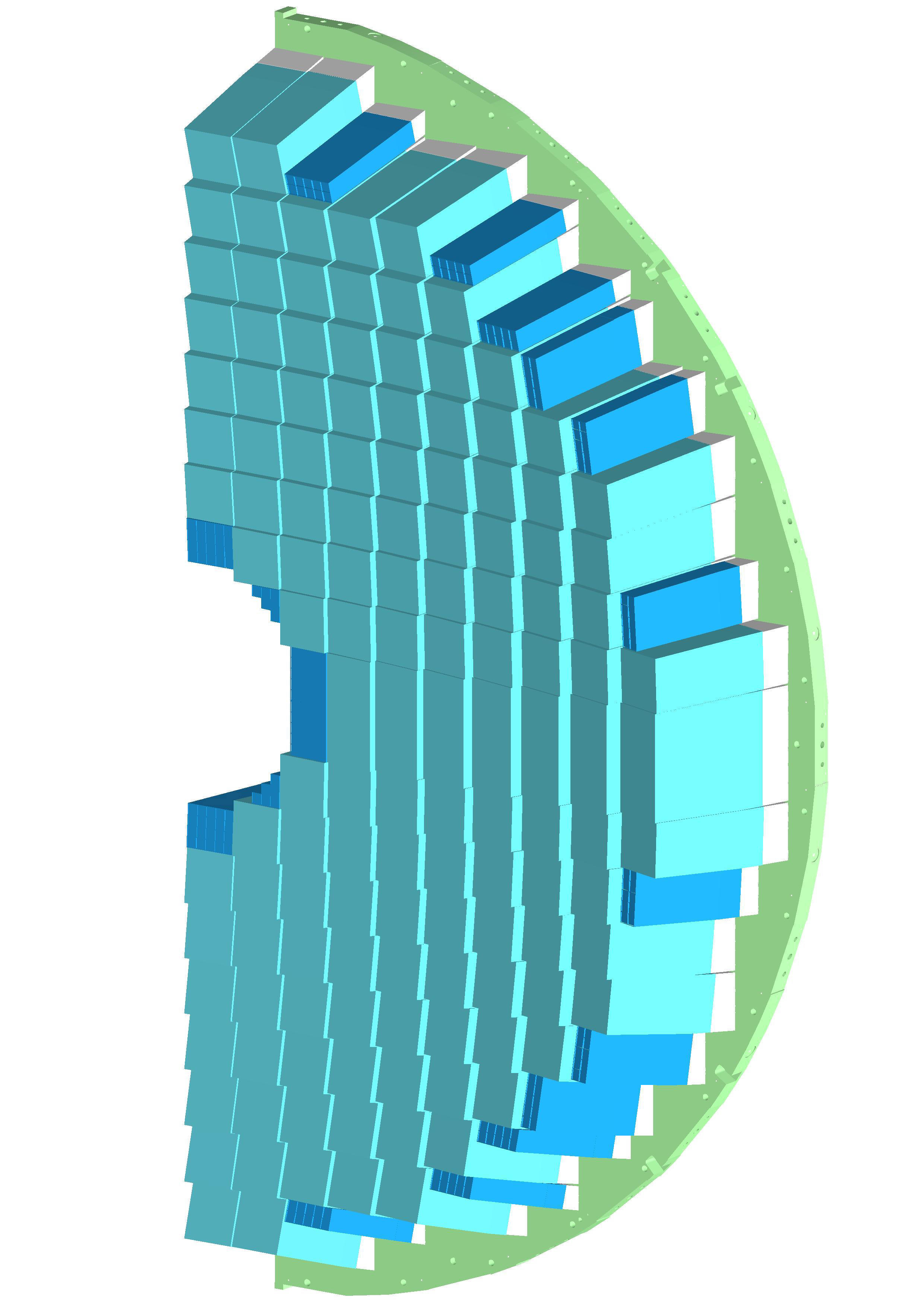

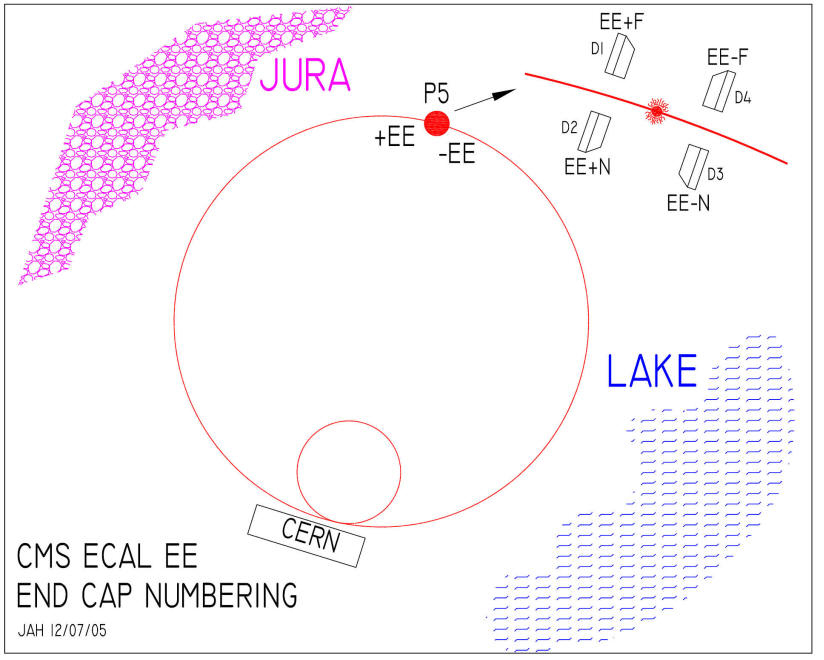

           Pro-E Dee (click for full view)                                 Positions of Dees in CMS

2008
Data summaries of VPT, Crystal, SC and location on Dee, 17.9.08 link
Envelope details and protection panels for Jean Bos, J Hill 15.5 txt pdf
 Patrick Ingenito's original envelope dwg from 2.12.1999, reference by K Bell 15.5 txt pdf
 Envelope drawing from B Smith dated 12.12.1999, referenced by Mario Scandurra 14.5 pdf
Envelope drawing from A Surkov dated 07.03.2000, referenced by John Hill 14.5 pdf

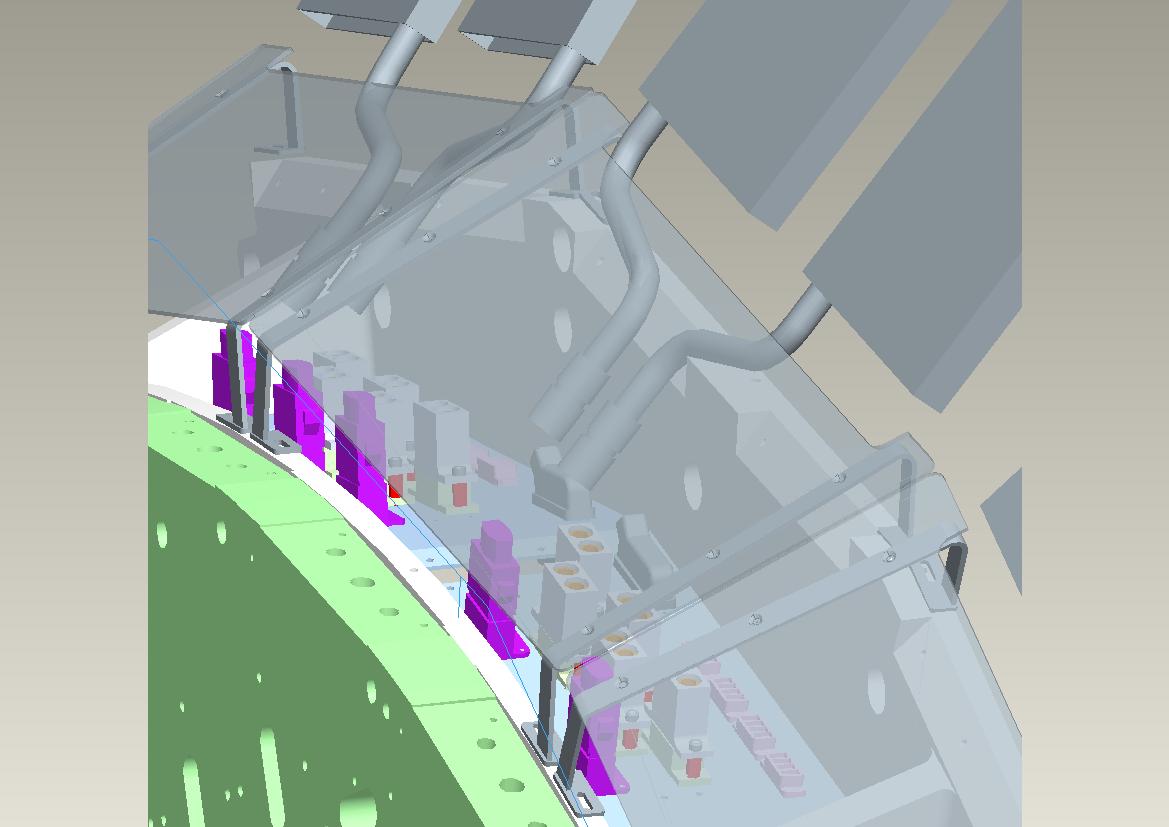

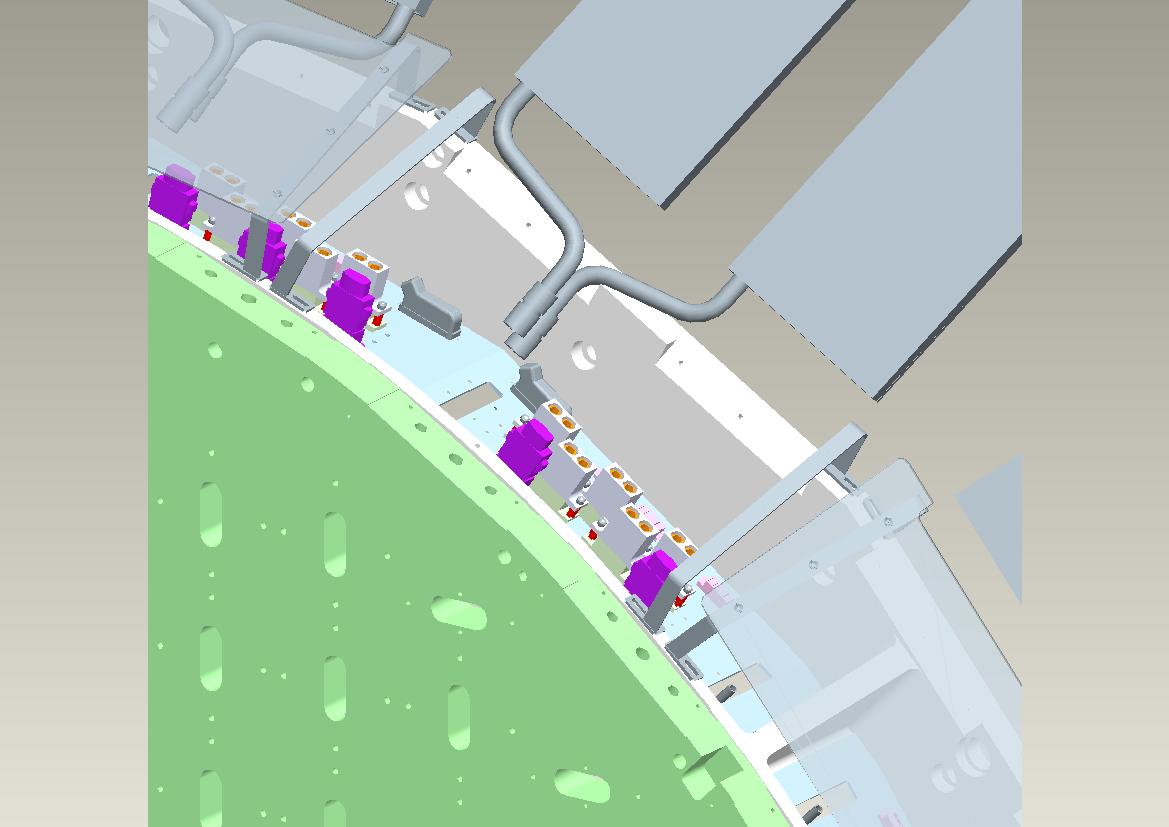

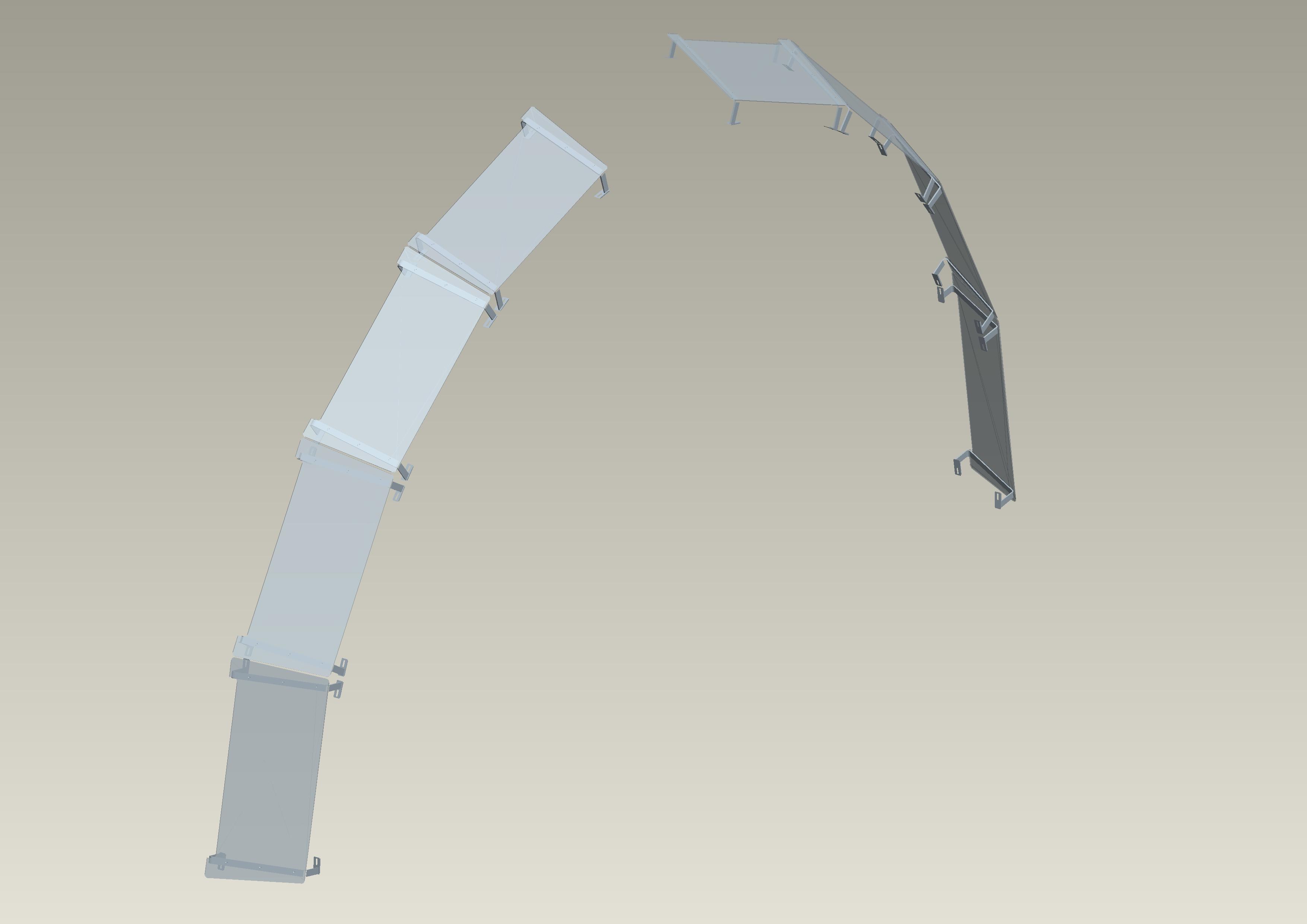

 Protection panel bracket type A, type B, and protection panel, plus associated ProE views, J Noviss 12.5 pdfA pdfB pdfPP
z-values for EE ring flange etc, field off, before shim reduction by 5mm, J Hill 12.5 pdf txt

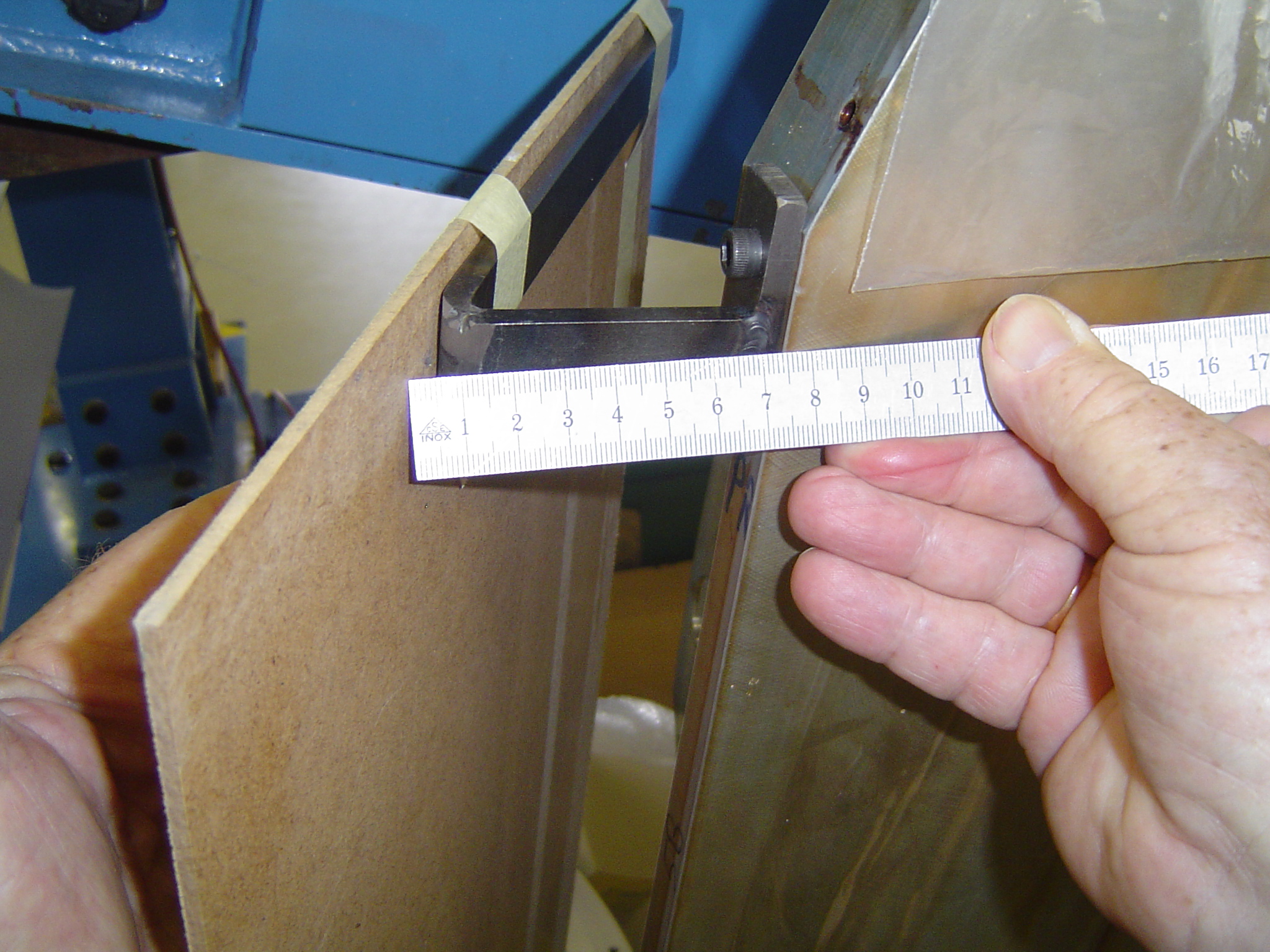

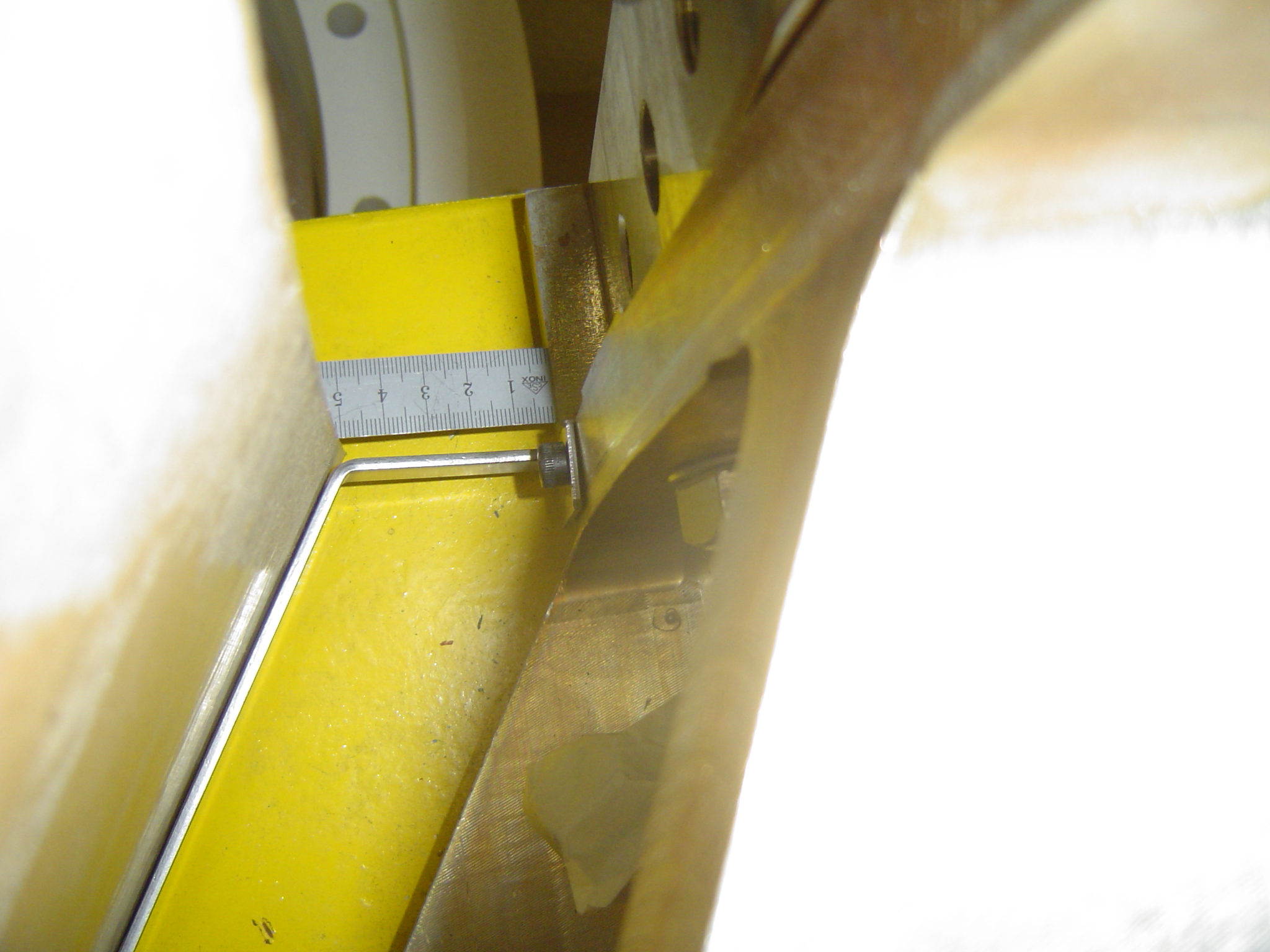

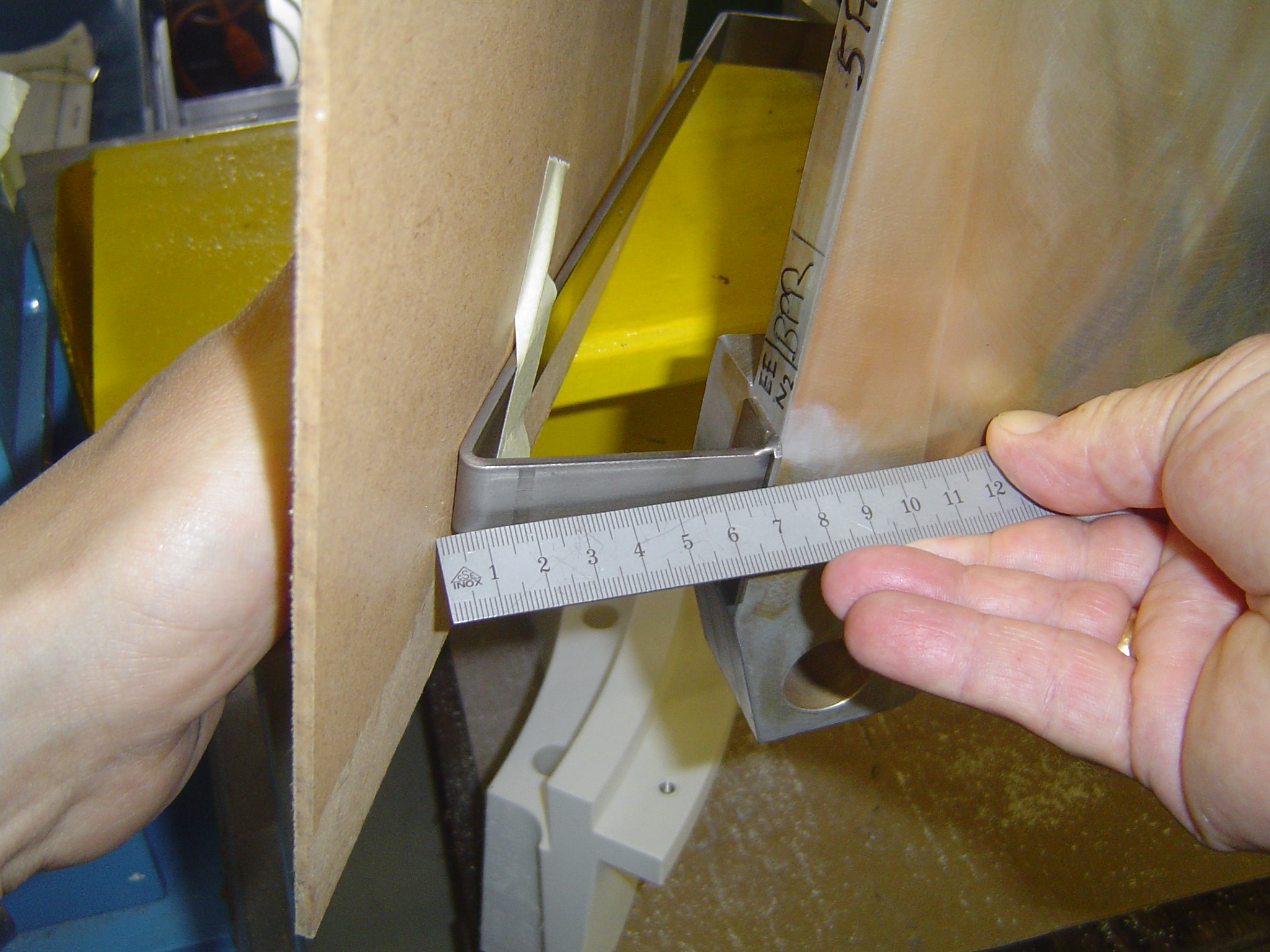

Views of protection panels on Dee1, M Scandurra 9.5

Prior to 2008

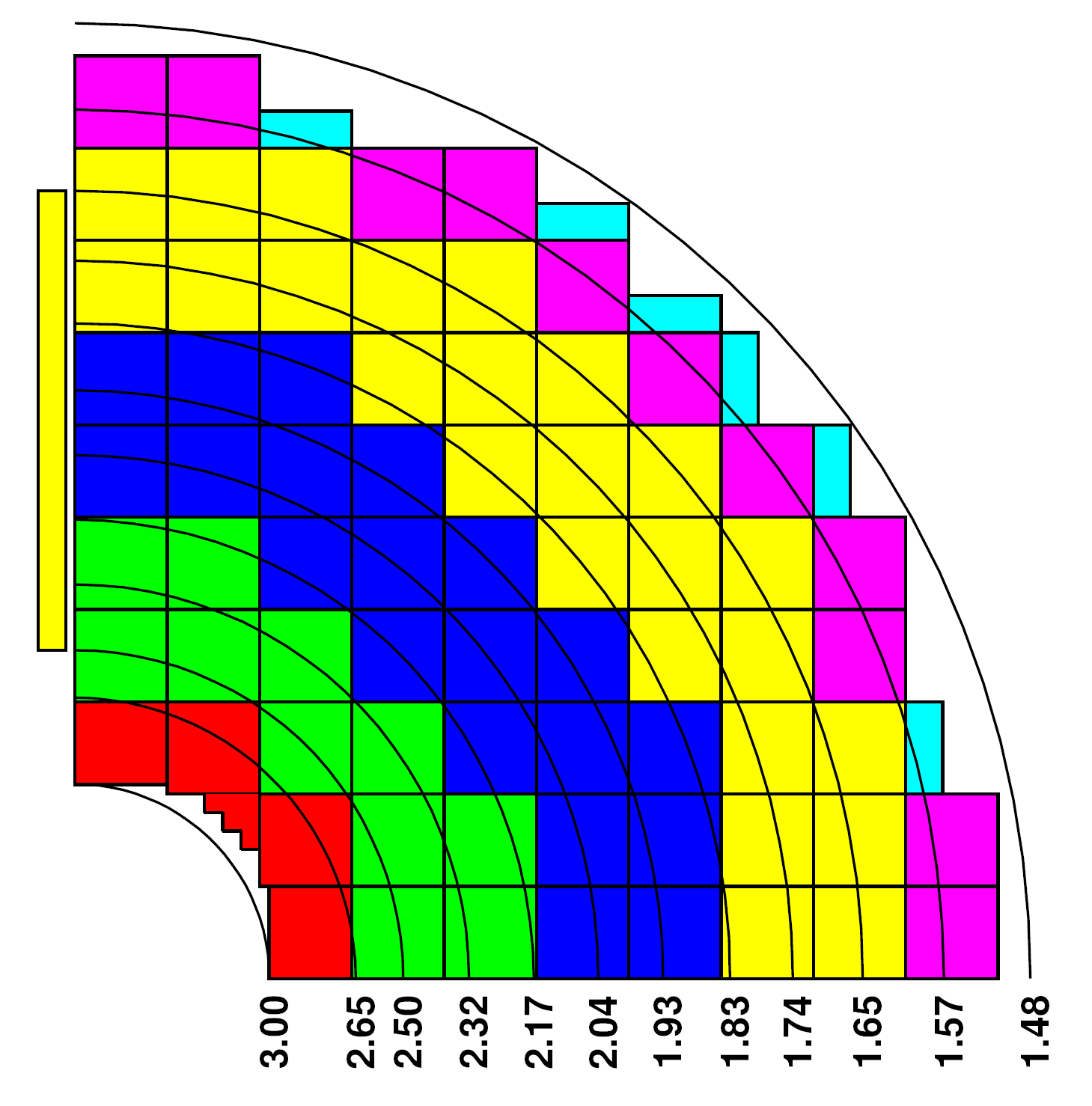

Sorting of xtals according to FNUF on the Dees, D Cockerill 18.6.07 ppt


SC type

Crystals
per SC

 SCs
per Dee

Crystals
per Dee
5x5 standard SCs  25 2 x 69 = 138 3450
2x5 partial SCs, outer  10 2 x 6 = 12 120
4x5 partial SCs, inner  20 2 x 2 = 4 80
3-2-1 partial SCs, inner  6 2 x 1 = 2 12
Totals/Dee 3662
Total, 2 Endcaps 14648

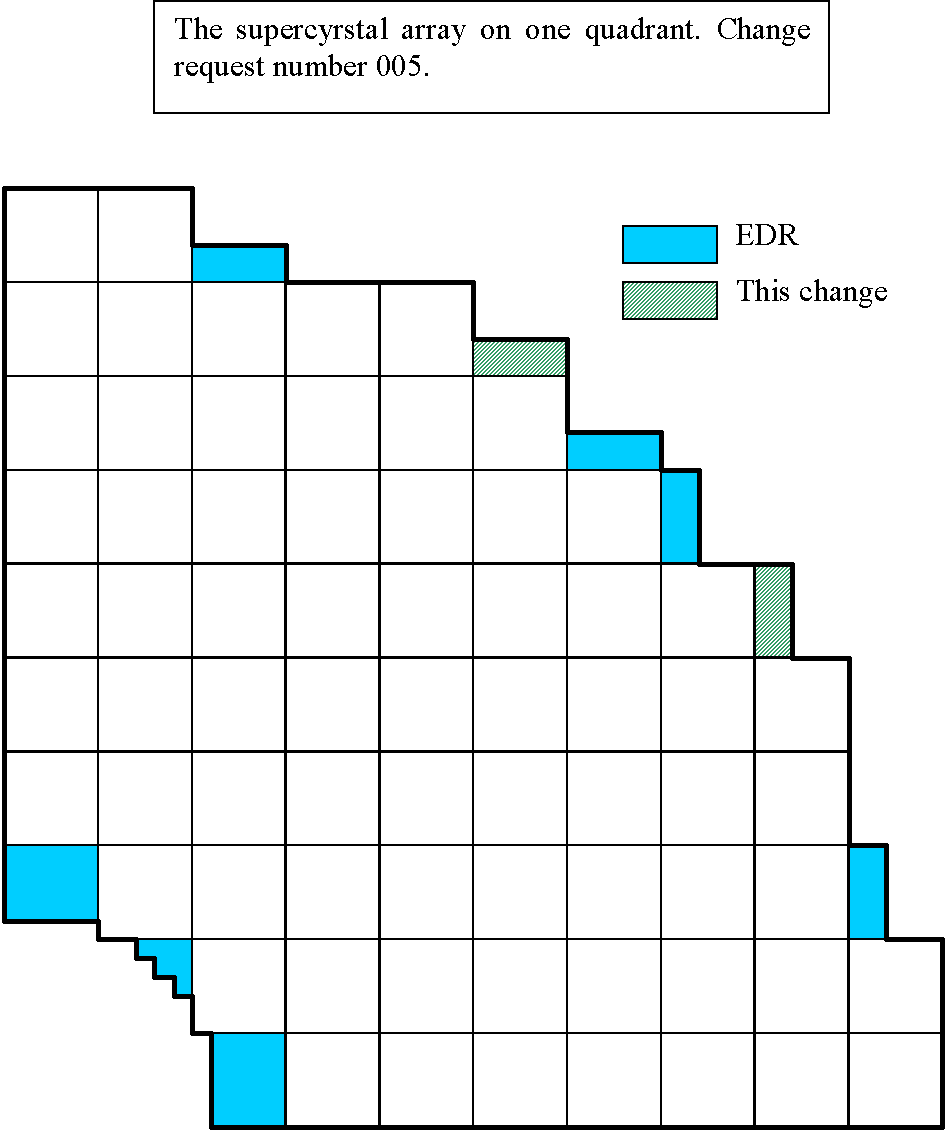

One quadrant of SC corners: introduction
One quadrant of SC corners: data


                                               EE Z positions, field off (click on picture to get pdf)

Item

 Distance from I.P. (mm)
FIELD OFF
 Subtract 16 mm,
 measured with CMS at 4T,
 Aug 06, for FIELD ON

EE envelope 3170

Start of screen 3172
End of screen 3174

SC corner nearest IP 3179
Crystal corner nearest IP 3185

Backplate starts 3590
Backplate ends 3650

EE ends 3650 + 341 for  service volume 3991

HE starts (megatile front) 4002.5

z position drawings, A Surkov, 31.5.05 pdf dwg
EE Z-position for OSCAR, A Nikitenko, 14.2.02 txt
EE Z-position for ORCA, D Barney, C Seez, 15.1.02 txt1  txt2
EE Z-position for CMSIM, Field ON, A Nikitenko, 15.1.02 txt
EE Front screen for CMSIM, A Nikitenko, 11.1.02 txt
Files produced by Bruce Kennedy for CMSIM, including screen, 11.1.02 txt dequad.f ec_backplate.f ec_frontplate.f ecal.tz
Further discussion, EE z values, A Nikitenko, 10.1.2002 txt
Discussion of EE z values, C Seez, 10.1.2002 txt

   Perimeter Crystal count





Crystals per quadrant

Crystals per EE
Outer perimeter, partial SCs, 6x10              60

480
Inner perimeter,  partial SCs   2*20 + 6  46 368
Total 106 848

Additional crystals, tower 17, eta<1.57
3x5 + 4x5 + 1x5 + 1x5 + 17 + 13 + 9 + 10 + 17 + 1x5 + 1x5 + 3x5 + 2x5

146

 1168
Additional crystals, towers 27&28, eta>2.5
3x5 + 8 + 1x25 + 12 + 1x25 + 8 + 3x5

108

864
Total

254

2032

Grand total, partials + h<1.57 + h>2.5

2880
